Pt-Wa2-4F7I-3CpPt-Wa2-4F7I-3Cp
4’ LED Eco-Slim Wraparound Luminaire with CCT and Wattage Selector
Portor’s Wraparound series is designed to save energy and meet lost light regress requirements. Our 7” wraparound is wattage adjustable (30W/35W/40W) and color tunable (35K/40K/50K).
Resources
CCT
- Field Selectable CCT
- 3500K
- 4000K
- 5000K
CRI
- 82 CRI
Controls Options
- Motion Sensor
- Occupancy Sensor
Dimming Protocol
- 0-10 V
- 1-10 V
Dimming Range
- 10%
- 50%
Efficacy
- 130 lm/w
- 133 lm/w
- 136 lm/w
Lamp Life
- 50000 hrs
Lamp Source
- LED
Listings
- UL
Lumens
- 4080 Lm
- 4655 Lm
- 5200 Lm
Ratings & Compliance
- ARRA
- DLC
- IP40
Voltage
- 120 V
- 277 V
Warranty
- 5 yr
Watts
- 30 w
- 35 w
- 40 w
Fixture Type
- Wraparound
Similar Products
Limited Stock Collection
Indoor Lighting Collection
PT-TRO-24-RTK-3CP

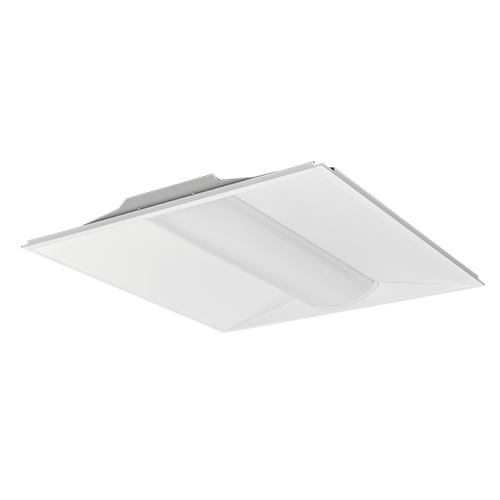

2’ x 4’ Retrofit-Kit Center Basket Troffer with CCT and Wattage Selector
